PMDG 737 in FlightFabric: voice commands, cockpit controls and live data

One of FlightFabric’s most developed integrations, with dedicated cockpit controls, voice commands and live data to try in the public alpha. Testing is incomplete across controls and variants; start with the notes below.

Applies to FlightFabric 0.13.2 public alpha · Alpha support · Generated from the app’s aircraft catalogue on

Testing and limitations

The aircraft-specific controls are mapped from PMDG’s SDK. The project has not yet confirmed them one by one in a live simulator session. Treat this integration as something to try and help test; listing a control does not establish that it works in every variant or flight condition.

Check the result in the cockpit, even when the app reports success. Confirmation depends on the control and the data available from the aircraft. If something does not respond as expected, report it on GitHub with your aircraft and version.

Aircraft profiles

The app includes profiles for these aircraft. Inclusion does not mean every variant has been tested. Check that FlightFabric identifies your loaded aircraft correctly.

  • PMDG Boeing 737-800
  • PMDG Boeing 737-600
  • PMDG Boeing 737-700
  • PMDG Boeing 737-900/900ER

Vendor: PMDG. Other 737 products from other developers are not covered by this page.

What you need

  • FlightFabric 0.13.2 on the Windows PC that runs Microsoft Flight Simulator 2024, with one of the aircraft installed. MSFS and the aircraft are separate products; FlightFabric is free and needs no account.
  • PMDG’s SDK data broadcast. In 737_Options.ini (737NG3_Options.ini on older versions), under the existing [SDK] section, set EnableDataBroadcast=1 and reload the aircraft. FlightFabric starts its PMDG SDK connection by itself and does not edit this file.
  • Voice control is optional and runs offline in the desktop app; the voice-control guide covers microphone and push-to-talk setup in five steps.

Try saying

These examples match phrases in the app’s command catalogue. Recognition and the aircraft’s response still need checking on your setup. Hold push-to-talk, speak, release, then check the result in the cockpit. Numbers are spoken as digits, so 270 is “two seven zero”.

  • “Set heading two seven zero”

    Selected heading: 270 deg

  • “Set altitude ten thousand”

    Selected altitude: 10,000 ft

  • “Start apu”

    Request APU selector START. Requires aircraft electrical power.

Browse the app catalogue and preview

These entries describe the app’s intended controls and data. They are generated from its catalogue, and listing an entry does not confirm it has been tested on your setup.

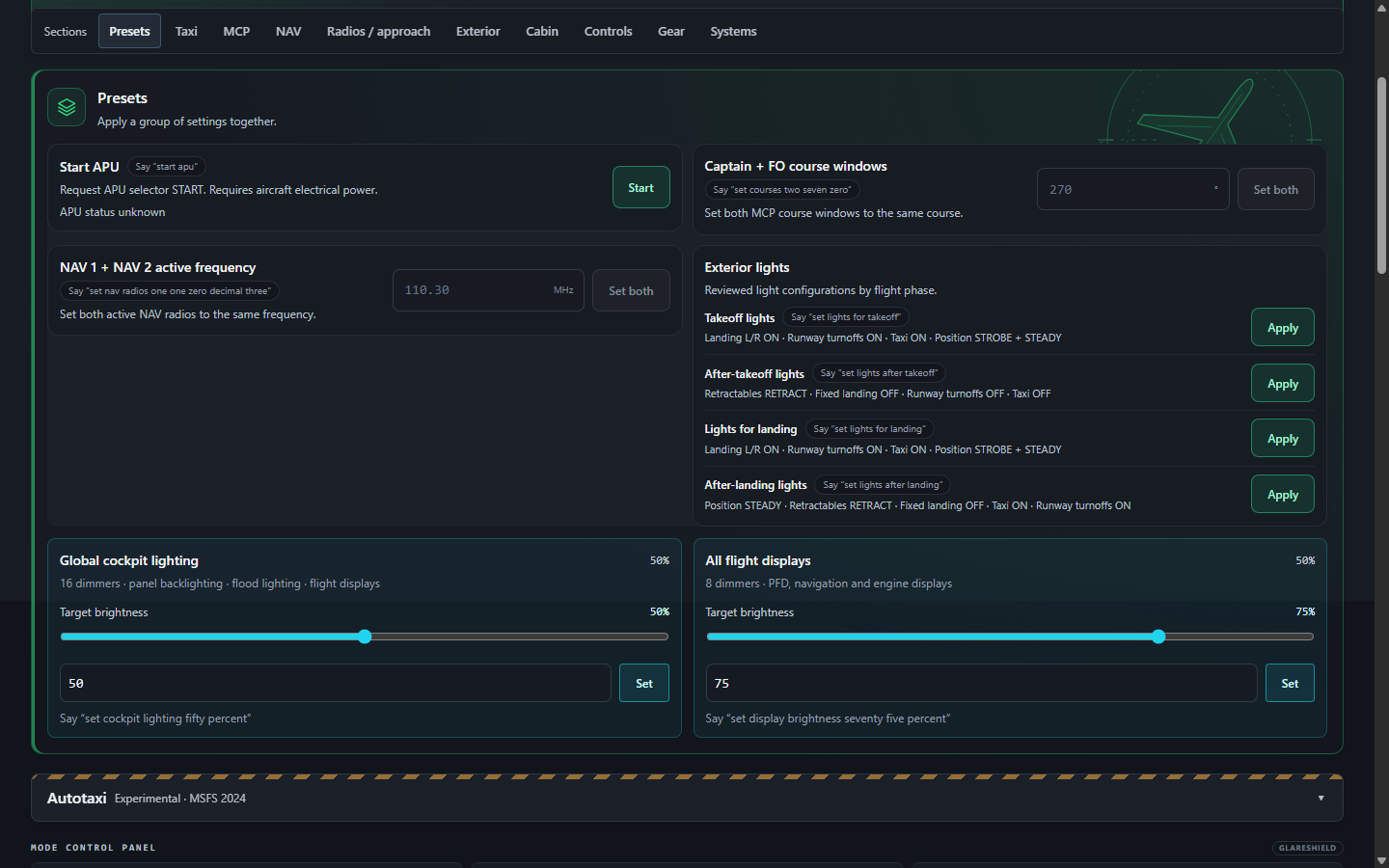

Development preview of the FlightFabric Aircraft page for the PMDG 737, showing its cockpit-system sections, presets and controls with sample data
The Aircraft page for the PMDG 737 · Development preview · Sample data

Command mappings

Commands listed by the app, grouped by cockpit system. Descriptions state the intended action; they do not establish a successful simulator test. Check current availability in the Aircraft page or Control library. Setting a heading or altitude target does not engage the autopilot.

Flight guidance

Flight guidance · 22 controls
ControlSayValue
Selected heading“set heading value”or 1 other phrasing0–359 deg · step 1
Selected altitude“set altitude value”or 3 other phrasings0–50,000 ft · step 100
Selected speed“set speed value”or 1 other phrasing100–399 kt · step 1
Selected Mach“set mach value”or 1 other phrasing0.4–0.99 Mach · step 0.01
Selected vertical speed“set vertical speed value”or 1 other phrasing-7,900–6,000 ft/min · step 100
Autopilot 1“engage autopilot one”or 6 other phrasingsOne action
Heading select“engage heading select”or 3 other phrasingsOne action
Altitude hold“engage altitude hold”or 1 other phrasingOne action
Vertical speed mode“engage vertical speed mode”or 3 other phrasingsOne action
Level change“engage level change”or 7 other phrasingsOne action
VOR/LOC“engage vor/loc”or 9 other phrasingsOne action
Approach mode“engage approach mode”or 8 other phrasingsOne action
LNAV“engage lnav”or 5 other phrasingsOne action
VNAV“engage vnav”or 3 other phrasingsOne action
Autopilot 2“engage autopilot two”or 5 other phrasingsOne action
MCP speed“engage mcp speed”or 4 other phrasingsOne action
N1 mode“engage n one”or 3 other phrasingsOne action
Autothrottle arm“autothrottle arm value”or 1 other phrasingOn / off
Captain flight director“captain flight director value”or 4 other phrasingsOn / off
Captain course“captain course value”or 1 other phrasing0–359 deg · step 1
First Officer flight director“first officer flight director value”or 4 other phrasingsOn / off
First officer course“first officer course value”or 1 other phrasing0–359 deg · step 1

Transponder and surveillance

Transponder and surveillance · 2 controls
ControlSayValue
Squawk“squawk value”or 4 other phrasingsFour digits, each 0–7
IDENT“ident”or 2 other phrasingsOne action

Approach setup

Approach setup · 2 controls
ControlSayValue
Captain minimums referenceSelects the EFIS minimums reference. Enter the numeric minimums in the cockpit.“captain minimums value”or 2 other phrasingsbaro · radio
First officer minimums referenceSelects the EFIS minimums reference. Enter the numeric minimums in the cockpit.“first officer minimums value”or 2 other phrasingsbaro · radio

Flight controls

Flight controls · 7 controls
ControlSayValue
Landing gear“gear value”or 1 other phrasingup · down
Flap detent“set flaps value”or 1 other phrasingup · 1 · 2 · 5 · 10 · 15 · 25 · 30 · 40
Parking brake“parking brake value”or 1 other phrasingSet / release
Ground spoilers“ground spoilers value”or 6 other phrasingsArm / disarm
Autobrake“set autobrake value”or 5 other phrasingsrto · off · 1 · 2 · 3 · max
Spoilers“spoilers value”or 7 other phrasingsretracted · half · full
Yaw damper“yaw damper value”or 1 other phrasingOn / off

Exterior lights

Exterior lights · 13 controls
ControlSayValue
Strobe lights“strobe lights value”or 7 other phrasingsOn / off
Taxi lights“taxi lights value”or 9 other phrasingsOn / off
Left landing lights“left landing lights value”or 7 other phrasingsOn / off
Right landing lights“right landing lights value”or 7 other phrasingsOn / off
Landing lightsAll four landing lights. OFF retracts both retractable lights and switches off both fixed lights.“landing lights value”or 9 other phrasingsOn / off
Runway turnoff lights“runway turnoff lights value”or 43 other phrasingsOn / off
Left runway turnoff lights“left runway turnoff lights value”or 31 other phrasingsOn / off
Right runway turnoff lights“right runway turnoff lights value”or 31 other phrasingsOn / off
Wing lights“wing lights value”or 1 other phrasingOn / off
Logo lights“logo lights value”or 1 other phrasingOn / off
Beacon lights“beacon lights value”or 7 other phrasingsOn / off
Wheel well lights“wheel well lights value”or 1 other phrasingOn / off
Position lights“position lights value”or 1 other phrasingoff · steady · strobe

Aircraft systems

Aircraft systems · 10 controls
ControlSayValue
APU master“apu master value”or 1 other phrasingOn / off
APU bleed“apu bleed value”or 1 other phrasingoff · on
Wing anti ice“wing anti ice value”or 1 other phrasingoff · on
External power“external power value”or 1 other phrasingOn / off
Pack 1“pack one value”or 3 other phrasingsoff · auto · high
Engine 1 bleed“engine one bleed value”or 3 other phrasingsoff · on
Engine 1 anti ice“engine one anti ice value”or 3 other phrasingsoff · on
Pack 2“pack two value”or 3 other phrasingsoff · auto · high
Engine 2 bleed“engine two bleed value”or 3 other phrasingsoff · on
Engine 2 anti ice“engine two anti ice value”or 3 other phrasingsoff · on

Cabin signs

Cabin signs · 3 controls
ControlSayValue
Seat belts“seat belts value”or 5 other phrasingsoff · auto · on
No smoking signs“no smoking value”or 3 other phrasingsoff · auto · on
Emergency lights“emergency lights value”or 3 other phrasingsoff · arm · on

Wipers and visibility

Wipers and visibility · 2 controls
ControlSayValue
Captain wiper“captain wiper value”or 1 other phrasingoff · intermittent · low · high
First officer wiper“first officer wiper value”or 1 other phrasingoff · intermittent · low · high

Navigation

Navigation · 2 controls
ControlSayValue
Captain ND range“captain range value”or 2 other phrasings5 · 10 · 20 · 40 · 80 · 160 · 320 · 640
First officer ND range“first officer range value”or 2 other phrasings5 · 10 · 20 · 40 · 80 · 160 · 320 · 640

Presets

Presets group several intended switch changes. Testing an individual switch does not establish that the whole preset works in every situation. Review its settings and check the result in the cockpit.

Presets

Presets · 10 presets
ControlSayValue
Start APURequest APU selector START. Requires aircraft electrical power.“start apu”or 7 other phrasingsOne action
Captain + FO course windowsSet both MCP course windows to the same course.“set course value”or 11 other phrasingsFor example: “set courses two seven zero”0–359 deg · step 1
NAV 1 + NAV 2 active frequencySet both active NAV radios to the same frequency.“set nav radios value”or 4 other phrasingsFor example: “set nav radios one one zero decimal three”108–117.95 MHz · step 0.05
Takeoff lightsLanding L/R ON · Runway turnoffs ON · Taxi ON · Position STROBE + STEADY“set lights for takeoff”or 8 other phrasingsOne action
After-takeoff lightsRetractables RETRACT · Fixed landing OFF · Runway turnoffs OFF · Taxi OFF“set lights after takeoff”or 10 other phrasingsOne action
Lights for landingLanding L/R ON · Runway turnoffs ON · Taxi ON · Position STROBE + STEADY“set lights for landing”or 5 other phrasingsOne action
After-landing lightsPosition STEADY · Retractables RETRACT · Fixed landing OFF · Taxi ON · Runway turnoffs ON“set lights after landing”or 5 other phrasingsOne action
Cockpit lighting8 dimmers · panel, flood and background lighting · flight displays unchanged“set cockpit lighting value”or 3 other phrasingsFor example: “cockpit lights fifty percent”0–100 % · step 1
Flight displays8 dimmers · PFD, navigation and engine displays · cockpit lighting unchanged“set display brightness value”or 17 other phrasingsFor example: “displays seventy five percent”0–100 % · step 1
All cockpit lights8 dimmers · panel, flood and background lighting · flight displays unchanged“set all cockpit lights value”or 3 other phrasingsFor example: “all cockpit lights fifty percent”0–100 % · step 1

More cockpit controls

Additional switch mappings listed in the app, with their intended positions. Availability and response depend on the aircraft and its current state.

Autoflight and flight directors 2
  • Cws A engage One action
  • Cws B engage One action
NAV 1 radio 3
  • Transfer One action
  • Inner decrement · increment
  • Outer decrement · increment
NAV 2 radio 3
  • Transfer One action
  • Inner decrement · increment
  • Outer decrement · increment
Flight controls 1
  • Stab trim main electric normal · cutout
Landing gear and brakes 1
  • Handle off One action
Exterior lights 2
  • Landing retractable left extend One action
  • Landing retractable right extend One action
Aircraft systems 10
  • Electrical battery off · bat · on
  • Electrical standby power bat · off · auto
  • Electrical bus transfer off · on
  • IRS left off · align · NAV · att
  • IRS right off · align · NAV · att
  • Window heat captain forward off · on
  • Window heat first officer forward off · on
  • Window heat captain side off · on
  • Window heat first officer side off · on
  • Electrical APU generators connect One action

Live cockpit data

Values listed in the app’s aircraft profile. Coverage, freshness and accuracy depend on the aircraft and connection; not every value has been checked in every variant or flight condition.

Mode control panel 6
  • Altitude ft
  • Heading deg
  • Speed
  • Vertical speed fpm
  • Course captain deg
  • Course first officer deg
Autoflight and flight directors 19
  • AP engaged
  • Autothrottle active
  • Altitude hold
  • Approach
  • Autothrottle arm
  • CMD A
  • CMD B
  • Cws A
  • Cws B
  • Flight director captain
  • Flight director first officer
  • Heading select
  • LNAV
  • Level change
  • N1
  • Speed
  • VNAV
  • VOR loc
  • Vertical speed
Radios 4
  • NAV 1 active mhz
  • NAV 1 standby mhz
  • NAV 2 active mhz
  • NAV 2 standby mhz
Transponder and surveillance 3
  • Squawk
  • Powered
  • Transmitting
Flight controls 12
  • Flap needle left
  • Flap needle right
  • Flap handle index
  • Leading edge extended
  • Leading edge transit
  • Speedbrake armed
  • Speedbrake percent
  • Speedbrake do not arm
  • Speedbrake extended
  • Yaw damper
  • Auto slat fail
  • Stab trim main electric cutout
Landing gear and brakes 11
  • Nose unsafe
  • Nose safe
  • Left unsafe
  • Right unsafe
  • Left safe
  • Right safe
  • Handle mode
  • Autobrake mode
  • Autobrake disarm
  • Anti skid inoperative
  • Parking brake
Exterior lights 13
  • Landing retractable left mode
  • Landing retractable right mode
  • Landing left
  • Landing right
  • Turnoff left
  • Turnoff right
  • Taxi
  • Logo
  • Position mode
  • Beacon
  • Wing
  • Wheel well
  • Emergency mode
Cockpit lighting 16
  • Overhead circuit breaker percent
  • Overhead panel percent
  • Main panel captain percent
  • Main panel first officer percent
  • Background percent
  • AFDS flood percent
  • Pedestal flood percent
  • Pedestal panel percent
  • Display captain outboard percent
  • Display captain inboard percent
  • Display captain map percent
  • Display upper percent
  • Display lower percent
  • Display first officer outboard percent
  • Display first officer inboard percent
  • Display first officer map percent
Aircraft systems 34
  • Electrical battery mode
  • Electrical standby power mode
  • Electrical ground power available
  • Electrical ground connection available
  • Electrical bus transfer auto
  • Electrical transfer bus 1 powered
  • Electrical transfer bus 2 powered
  • Electrical APU generator off bus
  • Electrical battery discharge
  • Electrical standby power off
  • IRS left mode
  • IRS right mode
  • IRS left align
  • IRS right align
  • IRS left fault
  • IRS right fault
  • Wing anti ice
  • Engine anti ice left
  • Engine anti ice right
  • Window heat captain forward
  • Window heat first officer forward
  • Window heat captain side
  • Window heat first officer side
  • Pack left mode
  • Pack right mode
  • Engine bleed left
  • Engine bleed right
  • APU bleed
  • IRS aligned
  • APU mode
  • APU egt
  • APU low oil pressure
  • APU fault
  • APU overspeed
Cabin signs 2
  • No smoking mode
  • Seat belts mode
Wipers and visibility 2
  • Wiper left mode
  • Wiper right mode
EFIS 4
  • Captain range nm
  • Captain minimums mode
  • First officer range nm
  • First officer minimums mode
Warnings 2
  • Master warning
  • Master caution
Voice queries 1
  • Flaps handle
Aircraft 1
  • Model

See the full aircraft support list or another aircraft: Fenix A320 family, FlyByWire A32NX, iniBuilds A350, PMDG 777, TFDi MD-11, FlyByWire A380X.
