Aircraft support · MSFS 2024 · Free
TFDi MD-11 in FlightFabric: voice commands, cockpit controls and live data
One of FlightFabric’s most developed integrations, with dedicated cockpit controls, voice commands and live data to try in the public alpha. Testing is incomplete across controls and variants; start with the notes below.
What has been checked
The individual controls were checked with a parked, powered TFDi MD-11 PW4462 in MSFS 2024: IAS, heading, altitude, exterior lights, signs, inHg pressure and radio minimums. Settings were changed and restored using independent aircraft readback. The four flight-phase light presets use those same light controls; their grouped sequences have passed software checks and still await a simulator check.
These controls are available in FlightFabric 0.11.0 and later. Autopilot engagement, flight-guidance mode changes, radios and deeper systems remain outside this control set. Other MD-11 variants and airborne operation have not been live-validated.
Aircraft profiles
The app includes profiles for this aircraft. Inclusion does not mean every variant has been tested. Check that FlightFabric identifies your loaded aircraft correctly.
- TFDi Design MD-11
Vendor: TFDi Design. Other McDonnell Douglas MD-11 products from other developers are not covered by this page.
What you need
- FlightFabric 0.13.2 on the Windows PC that runs Microsoft Flight Simulator 2024, with the aircraft installed. MSFS and the aircraft are separate products; FlightFabric is free and needs no account.
- Some controls use the separately installed MobiFlight Event Module, enabled in MSFS 2024 My Library. Aircraft data stays viewable without it; the affected controls, marked below, stay disabled until it is detected.
- Voice control is optional and runs offline in the desktop app; the voice-control guide covers microphone and push-to-talk setup in five steps.
Try saying
These examples match phrases in the app’s command catalogue. Recognition and the aircraft’s response still need checking on your setup. Hold push-to-talk, speak, release, then check the result in the cockpit. Numbers are spoken as digits, so 270 is “two seven zero”.
Browse the app catalogue and preview
These entries describe the app’s intended controls and data. They are generated from its catalogue, and listing an entry does not confirm it has been tested on your setup.
How the app labels it: TFDi integration LVARs Controls and live data
Its Aircraft page describes the integration as “Flight guidance targets, exterior lights, cabin signs and approach settings.”
Command mappings
Commands listed by the app, grouped by cockpit system. Descriptions state the intended action; they do not establish a successful simulator test. Check current availability in the Aircraft page or Control library. Setting a heading or altitude target does not engage the autopilot.
Flight guidance
| Control | Say | Value | Status |
|---|---|---|---|
| AUTOFLIGHTPresses the cockpit mode button once. Check the FMA for arming or engagement before repeating. Uses the MobiFlight Event Module. | “autoflight”or 2 other phrasings | One action | Untested |
| FMS speedPresses the cockpit mode button once. Check the FMA for arming or engagement before repeating. Uses the MobiFlight Event Module. | “fms speed”or 2 other phrasings | One action | Untested |
| NAVPresses the cockpit mode button once. Check the FMA for arming or engagement before repeating. Uses the MobiFlight Event Module. | “nav mode”or 2 other phrasings | One action | Untested |
| PROFPresses the cockpit mode button once. Check the FMA for arming or engagement before repeating. Uses the MobiFlight Event Module. | “prof”or 2 other phrasings | One action | Untested |
| Approach modeUses the MobiFlight Event Module. | “engage approach mode”or 8 other phrasings | One action | Untested |
| Selected speed | “set speed value”or 1 other phrasing | 100–399 kt · step 1 | Partial |
| Selected heading | “set heading value”or 1 other phrasing | 0–359 deg · step 1 | Partial |
| Selected altitude | “set altitude value”or 3 other phrasings | 0–50,000 ft · step 100 | Partial |
Approach setup
| Control | Say | Value | Status |
|---|---|---|---|
| Captain radio minimumsRequires RADIO reference. Linked aircraft settings may update both sides. Uses the MobiFlight Event Module. | “set captain radio minimums value”or 1 other phrasing | 0–1,000 ft · step 10 | Partial |
| First officer radio minimumsRequires RADIO reference. Linked aircraft settings may update both sides. Uses the MobiFlight Event Module. | “set first officer radio minimums value”or 1 other phrasing | 0–1,000 ft · step 10 | Partial |
Altimeters
| Control | Say | Value | Status |
|---|---|---|---|
| Captain QNH (inHg) | “captain qnh value”or 6 other phrasings | 28–31 inhg · step 0.01 | Partial |
| First officer QNH (inHg) | “first officer qnh value”or 6 other phrasings | 28–31 inhg · step 0.01 | Partial |
Flight controls
| Control | Say | Value | Status |
|---|---|---|---|
| Flap detentUses the MobiFlight Event Module. | “set flaps value”or 1 other phrasing | up · 0 · takeoff · 28 · 35 · 50 | Partial |
| Ground spoilersUses the MobiFlight Event Module. | “ground spoilers value”or 6 other phrasings | Arm / disarm | Partial |
| SpoilersDisarm automatic spoilers, then select the manual handle position. Uses the MobiFlight Event Module. | “spoilers value”or 7 other phrasings | retracted · one-third · two-thirds · full | Partial |
| AutobrakeUses the MobiFlight Event Module. | “set autobrake value”or 5 other phrasings | rto · off · min · med · max | Partial |
| Landing gear | “gear value”or 1 other phrasing | up · down | Standard |
Exterior lights
| Control | Say | Value | Status |
|---|---|---|---|
| Nav lightsUses the MobiFlight Event Module. | “nav lights value”or 7 other phrasings | On / off | Partial |
| Beacon lightsUses the MobiFlight Event Module. | “beacon lights value”or 7 other phrasings | On / off | Partial |
| Strobe lightsUses the MobiFlight Event Module. | “strobe lights value”or 7 other phrasings | On / off | Partial |
| Logo lightsUses the MobiFlight Event Module. | “logo lights value”or 1 other phrasing | On / off | Partial |
| Left runway turnoff lightsUses the MobiFlight Event Module. | “left runway turnoff lights value”or 31 other phrasings | On / off | Partial |
| Right runway turnoff lightsUses the MobiFlight Event Module. | “right runway turnoff lights value”or 31 other phrasings | On / off | Partial |
| Left landing lightsUses the MobiFlight Event Module. | “left landing lights value”or 7 other phrasings | On / off | Partial |
| Right landing lightsUses the MobiFlight Event Module. | “right landing lights value”or 7 other phrasings | On / off | Partial |
| Taxi lightsUses the MobiFlight Event Module. | “taxi lights value”or 9 other phrasings | On / off | Partial |
| Nose lightUses the MobiFlight Event Module. | “nose light value”or 1 other phrasing | off · taxi · land | Partial |
| Landing lightsBoth fuselage landing lights; OFF retracts both. Nose light is separate. Uses the MobiFlight Event Module. | “landing lights value”or 9 other phrasings | On / off | Partial |
| Runway turnoff lightsBoth runway turnoff lights. Uses the MobiFlight Event Module. | “runway turnoff lights value”or 43 other phrasings | On / off | Partial |
Cabin signs
| Control | Say | Value | Status |
|---|---|---|---|
| Seat beltsUses the MobiFlight Event Module. | “seat belts value”or 5 other phrasings | off · auto · on | Partial |
| No smoking signsUses the MobiFlight Event Module. | “no smoking value”or 3 other phrasings | off · auto · on | Partial |
Presets
Presets group several intended switch changes. Testing an individual switch does not establish that the whole preset works in every situation. Review its settings and check the result in the cockpit.
Presets
| Control | Say | Value | Status |
|---|---|---|---|
| Takeoff lightsLanding L/R ON · Turnoffs L/R ON · Nose LAND · Strobe ON · Navigation ON Uses the MobiFlight Event Module. | “set lights for takeoff”or 8 other phrasings | One action | Partial |
| After-takeoff lightsLanding L/R RETRACT · Turnoffs L/R OFF · Nose OFF; strobe and navigation stay as set. Uses the MobiFlight Event Module. | “set lights after takeoff”or 10 other phrasings | One action | Partial |
| Lights for landingLanding L/R ON · Turnoffs L/R ON · Nose LAND · Strobe ON · Navigation ON Uses the MobiFlight Event Module. | “set lights for landing”or 5 other phrasings | One action | Partial |
| After-landing lightsOnce clear of the runway: Strobe OFF · Landing L/R RETRACT · Nose TAXI · Turnoffs L/R ON Uses the MobiFlight Event Module. | “set lights after landing”or 5 other phrasings | One action | Partial |

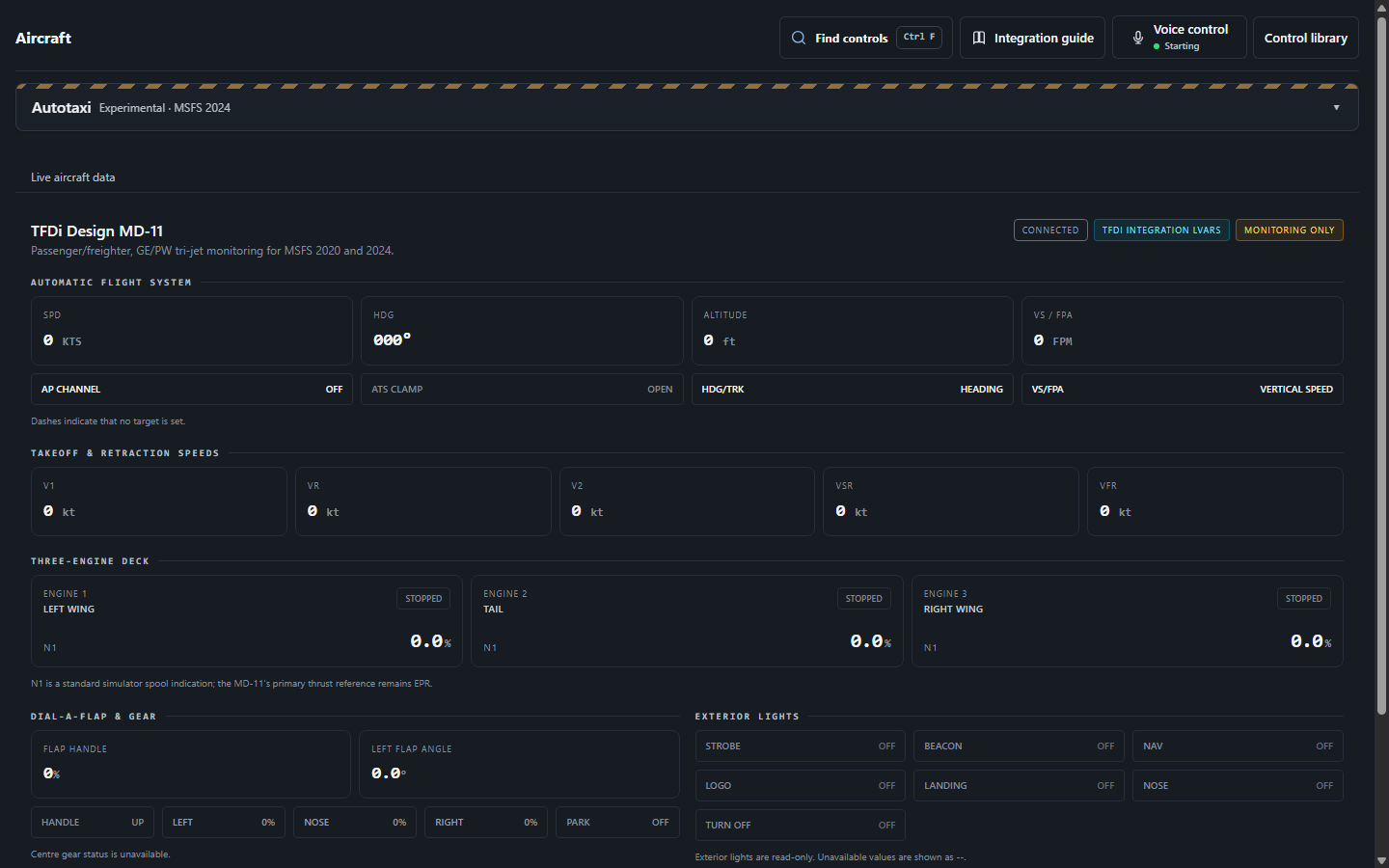

Live cockpit data
Values listed in the app’s aircraft profile. Coverage, freshness and accuracy depend on the aircraft and connection; not every value has been checked in every variant or flight condition.
Approach setup 4
- Captain minimums
- First officer minimums
- Captain minimums mode
- First officer minimums mode
Altimeters 2
- Captain value
- First officer value
Exterior lights 9
- Strobe
- Beacon
- NAV
- Logo
- Turnoff left
- Turnoff right
- Landing left position
- Landing right position
- Nose position
Aircraft systems 18
- APU state
- APU N1
- APU n 2
- Bus voltage
- Engine 1 N1
- Engine 2 N1
- Engine 3 N1
- Engine 1 running
- Engine 2 running
- Engine 3 running
- Fuel total pct
- Fuel total weight lbs
- Gross weight lbs
- Cabin altitude ft
- Cabin vertical speed fpm
- Cabin delta pressure psi
- Outside air temperature C
- Mach
Cabin signs 2
- Seat belts position
- No smoking position
Afs 11
- Speed value
- Heading value
- Altitude value
- Vertical value
- AP state
- AP master
- Ats clamped
- Speed mode
- Heading mode
- Vertical mode
- Altitude unit
Controls 12
- Flaps percent
- Flap angle deg
- Gear handle down
- Gear nose pct
- Gear left pct
- Gear right pct
- Parking brake
- Autobrake position
- Flaps handle
- Spoilers position
- Spoilers armed
- Flaps settled
Performance 5
- V 1
- Vr
- V 2
- Vsr
- Vfr
