PMDG 777 in FlightFabric: voice commands, cockpit controls and live data

One of FlightFabric’s most developed integrations, with dedicated cockpit controls, voice commands and live data to try in the public alpha. Testing is incomplete across controls and variants; start with the notes below.

Applies to FlightFabric 0.13.2 public alpha · Alpha support · Generated from the app’s aircraft catalogue on

Testing and limitations

The aircraft-specific controls are mapped from PMDG’s SDK. The project has not yet confirmed them one by one in a live simulator session. Treat this integration as something to try and help test; listing a control does not establish that it works in every variant or flight condition.

Check the result in the cockpit, even when the app reports success. Confirmation depends on the control and the data available from the aircraft. If something does not respond as expected, report it on GitHub with your aircraft and version.

Aircraft profiles

The app includes profiles for these aircraft. Inclusion does not mean every variant has been tested. Check that FlightFabric identifies your loaded aircraft correctly.

  • PMDG Boeing 777-300ER
  • PMDG Boeing 777-200ER
  • PMDG Boeing 777-200LR
  • PMDG Boeing 777F

Vendor: PMDG. Other 777 products from other developers are not covered by this page.

What you need

  • FlightFabric 0.13.2 on the Windows PC that runs Microsoft Flight Simulator 2024, with one of the aircraft installed. MSFS and the aircraft are separate products; FlightFabric is free and needs no account.
  • PMDG’s SDK data broadcast. In 777_Options.ini, under the existing [SDK] section, set EnableDataBroadcast=1 and reload the aircraft. FlightFabric starts its PMDG SDK connection by itself and does not edit this file.
  • Voice control is optional and runs offline in the desktop app; the voice-control guide covers microphone and push-to-talk setup in five steps.

Try saying

These examples match phrases in the app’s command catalogue. Recognition and the aircraft’s response still need checking on your setup. Hold push-to-talk, speak, release, then check the result in the cockpit. Numbers are spoken as digits, so 270 is “two seven zero”.

  • “Set speed two five zero”

    Selected speed: 250 kt

  • “Set heading two seven zero”

    Selected heading: 270 deg

  • “Start apu”

    Request APU selector START. Requires aircraft electrical power.

Browse the app catalogue and preview

These entries describe the app’s intended controls and data. They are generated from its catalogue, and listing an entry does not confirm it has been tested on your setup.

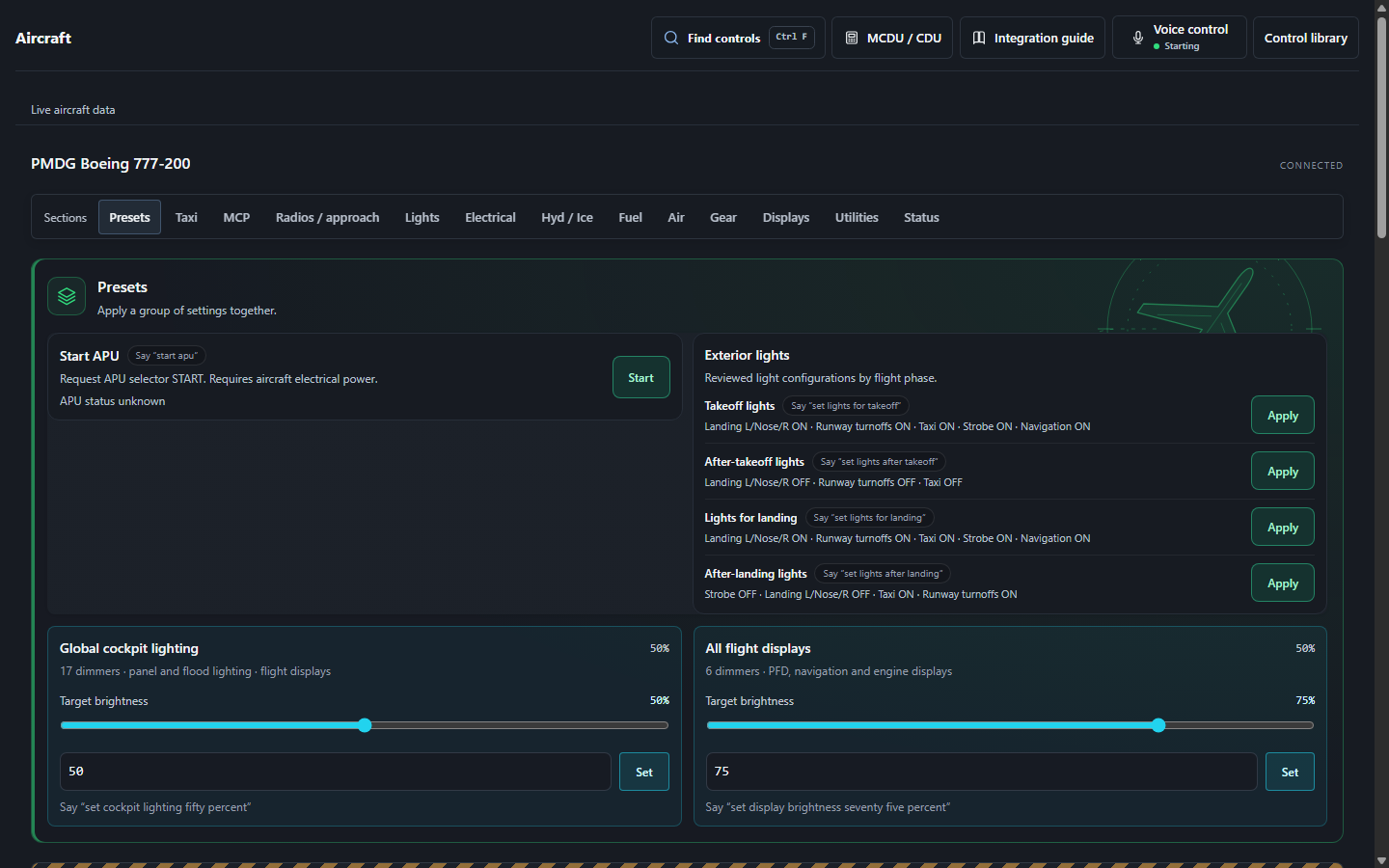

Development preview of the FlightFabric Aircraft page for the PMDG 777, showing its cockpit-system sections, presets and controls with sample data
The Aircraft page for the PMDG 777 · Development preview · Sample data

Command mappings

Commands listed by the app, grouped by cockpit system. Descriptions state the intended action; they do not establish a successful simulator test. Check current availability in the Aircraft page or Control library. Setting a heading or altitude target does not engage the autopilot.

Flight guidance

Flight guidance · 22 controls
ControlSayValue
Selected speed“set speed value”or 1 other phrasing100–399 kt · step 1
Selected Mach“set mach value”or 1 other phrasing0.4–0.99 Mach · step 0.01
Selected heading“set heading value”or 1 other phrasing0–359 deg · step 1
Selected altitude“set altitude value”or 3 other phrasings0–50,000 ft · step 100
Selected vertical speed“set vertical speed value”or 1 other phrasing-7,900–6,000 ft/min · step 100
Selected flight path angle“set flight path angle value”or 5 other phrasings-9.9–9.9 deg · step 0.1
Captain flight director“captain flight director value”or 4 other phrasingsOn / off
Autopilot 1“engage autopilot one”or 6 other phrasingsOne action
Left autothrottle arm“left autothrottle arm value”or 3 other phrasingsOn / off
LNAV“engage lnav”or 5 other phrasingsOne action
VNAV“engage vnav”or 3 other phrasingsOne action
Level change“engage level change”or 7 other phrasingsOne action
Heading hold“engage heading hold”or 1 other phrasingOne action
Vertical speed mode“engage vertical speed mode”or 3 other phrasingsOne action
Altitude hold“engage altitude hold”or 1 other phrasingOne action
VOR/LOC“engage vor/loc”or 9 other phrasingsOne action
Approach mode“engage approach mode”or 8 other phrasingsOne action
Right autothrottle arm“right autothrottle arm value”or 3 other phrasingsOn / off
Autopilot 2“engage autopilot two”or 5 other phrasingsOne action
First Officer flight director“first officer flight director value”or 4 other phrasingsOn / off
Heading reference“set heading reference value”or 1 other phrasinghdg · trk
Vertical reference“set vertical reference value”or 1 other phrasingvs · fpa

Transponder and surveillance

Transponder and surveillance · 2 controls
ControlSayValue
Squawk“squawk value”or 4 other phrasingsFour digits, each 0–7
IDENT“ident”or 2 other phrasingsOne action

Approach setup

Approach setup · 2 controls
ControlSayValue
Captain minimums referenceSelects the EFIS minimums reference. Enter the numeric minimums in the cockpit.“captain minimums value”or 2 other phrasingsbaro · radio
First officer minimums referenceSelects the EFIS minimums reference. Enter the numeric minimums in the cockpit.“first officer minimums value”or 2 other phrasingsbaro · radio

Flight controls

Flight controls · 6 controls
ControlSayValue
Landing gear“gear value”or 1 other phrasingup · down
Flap detent“set flaps value”or 1 other phrasingup · 1 · 5 · 15 · 20 · 25 · 30
Ground spoilers“ground spoilers value”or 6 other phrasingsArm / disarm
Parking brake“parking brake value”or 1 other phrasingSet / release
Autobrake“set autobrake value”or 5 other phrasingsrto · off · disarm · 1 · 2 · max
Spoilers“spoilers value”or 7 other phrasingsretracted · half · full

Exterior lights

Exterior lights · 13 controls
ControlSayValue
Beacon lights“beacon lights value”or 7 other phrasingsOn / off
Nav lights“nav lights value”or 7 other phrasingsOn / off
Strobe lights“strobe lights value”or 7 other phrasingsOn / off
Taxi lights“taxi lights value”or 9 other phrasingsOn / off
Landing lights“landing lights value”or 9 other phrasingsOn / off
Left landing lights“left landing lights value”or 7 other phrasingsOn / off
Nose landing lights“nose landing lights value”or 7 other phrasingsOn / off
Right landing lights“right landing lights value”or 7 other phrasingsOn / off
Runway turnoff lights“runway turnoff lights value”or 43 other phrasingsOn / off
Left runway turnoff lights“left runway turnoff lights value”or 31 other phrasingsOn / off
Right runway turnoff lights“right runway turnoff lights value”or 31 other phrasingsOn / off
Wing lights“wing lights value”or 1 other phrasingOn / off
Logo lights“logo lights value”or 1 other phrasingOn / off

Aircraft systems

Aircraft systems · 10 controls
ControlSayValue
APU master“apu master value”or 1 other phrasingOn / off
APU generator“apu generator value”or 1 other phrasingOn / off
APU bleed“apu bleed value”or 1 other phrasingoff · auto
Wing anti ice“wing anti ice value”or 1 other phrasingoff · auto · on
Pack 1“pack one value”or 3 other phrasingsoff · auto
Engine 1 bleed“engine one bleed value”or 3 other phrasingsoff · auto
Engine 1 anti ice“engine one anti ice value”or 3 other phrasingsoff · auto · on
Pack 2“pack two value”or 3 other phrasingsoff · auto
Engine 2 bleed“engine two bleed value”or 3 other phrasingsoff · auto
Engine 2 anti ice“engine two anti ice value”or 3 other phrasingsoff · auto · on

Cabin signs

Cabin signs · 3 controls
ControlSayValue
Seat belts“seat belts value”or 5 other phrasingsoff · auto · on
No smoking signs“no smoking value”or 3 other phrasingsoff · auto · on
Emergency lights“emergency lights value”or 3 other phrasingsoff · arm · on

Wipers and visibility

Wipers and visibility · 2 controls
ControlSayValue
Captain wiper“captain wiper value”or 1 other phrasingoff · intermittent · low · high
First officer wiper“first officer wiper value”or 1 other phrasingoff · intermittent · low · high

Navigation

Navigation · 4 controls
ControlSayValue
Captain ND range“captain range value”or 2 other phrasings10 · 20 · 40 · 80 · 160 · 320 · 640
First officer ND range“first officer range value”or 2 other phrasings10 · 20 · 40 · 80 · 160 · 320 · 640
Captain ND mode“captain nd mode value”or 3 other phrasingsapproach · vor · map · plan
First officer ND mode“first officer nd mode value”or 3 other phrasingsapproach · vor · map · plan

Presets

Presets group several intended switch changes. Testing an individual switch does not establish that the whole preset works in every situation. Review its settings and check the result in the cockpit.

Presets

Presets · 8 presets
ControlSayValue
Start APURequest APU selector START. Requires aircraft electrical power.“start apu”or 7 other phrasingsOne action
Takeoff lightsLanding L/Nose/R ON · Runway turnoffs ON · Taxi ON · Strobe ON · Navigation ON“set lights for takeoff”or 8 other phrasingsOne action
After-takeoff lightsLanding L/Nose/R OFF · Runway turnoffs OFF · Taxi OFF“set lights after takeoff”or 10 other phrasingsOne action
Lights for landingLanding L/Nose/R ON · Runway turnoffs ON · Taxi ON · Strobe ON · Navigation ON“set lights for landing”or 5 other phrasingsOne action
After-landing lightsStrobe OFF · Landing L/Nose/R OFF · Taxi ON · Runway turnoffs ON“set lights after landing”or 5 other phrasingsOne action
Cockpit lighting11 dimmers · panel, flood and background lighting · flight displays unchanged“set cockpit lighting value”or 3 other phrasingsFor example: “cockpit lights fifty percent”0–100 % · step 1
Flight displays6 dimmers · PFD, navigation and engine displays · cockpit lighting unchanged“set display brightness value”or 17 other phrasingsFor example: “displays seventy five percent”0–100 % · step 1
All cockpit lights11 dimmers · panel, flood and background lighting · flight displays unchanged“set all cockpit lights value”or 3 other phrasingsFor example: “all cockpit lights fifty percent”0–100 % · step 1

More cockpit controls

Additional switch mappings listed in the app, with their intended positions. Availability and response depend on the aircraft and its current state.

Mode control panel 2
  • Bank limit auto · five · ten · fifteen · twenty · twenty five
  • Altitude increment auto · thousand
Cockpit lighting 5
  • Storm off · on
  • Master bright off · on
  • Indicator lights test · bright · dim
  • Floor bright · off · dim
  • Master brightness set 0–100 · step 1
Aircraft systems 51
  • Adiru off · on
  • Electrical cabin utility off · on
  • Electrical ife passenger seats off · on
  • Electrical battery off · on
  • Electrical generator left off · on
  • Electrical generator right off · on
  • Electrical backup generator left off · on
  • Electrical backup generator right off · on
  • Ice window heat left side off · on
  • Ice window heat left forward off · on
  • Ice window heat right forward off · on
  • Ice window heat right side off · on
  • Hydraulics engine pump left off · on
  • Hydraulics engine pump right off · on
  • Hydraulics electric pump left off · on
  • Hydraulics electric pump right off · on
  • Fuel crossfeed forward off · on
  • Fuel crossfeed aft off · on
  • Fuel pump forward left off · on
  • Fuel pump forward right off · on
  • Fuel pump aft left off · on
  • Fuel pump aft right off · on
  • Fuel pump center left off · on
  • Fuel pump center right off · on
  • Air trim air left off · on
  • Air trim air right off · on
  • Air recirc upper off · on
  • Air recirc lower off · on
  • Air gasper off · on
  • Engine autostart off · on
  • Service interphone off · on
  • Electrical bus tie left off · auto
  • Electrical bus tie right off · auto
  • Electrical standby power off · auto · battery
  • Thrust asym comp disconnect · auto
  • Hydraulics demand electric left off · auto · on
  • Hydraulics demand electric right off · auto · on
  • Hydraulics demand air left off · auto · on
  • Hydraulics demand air right off · auto · on
  • Air equipment cooling override · auto
  • Air outflow forward manual · auto
  • Air outflow aft manual · auto
  • Air main deck flow high · normal
  • Engine eec left alternate · normal
  • Engine eec right alternate · normal
  • Engine start left start · normal
  • Engine start right start · normal
  • Engine fuel control left cutoff · run
  • Engine fuel control right cutoff · run
  • Electrical external power primary off · on
  • Electrical external power secondary off · on
EFIS 6
  • Captain baro units inhg · hpa
  • Captain bearing left VOR · off · ADF
  • Captain bearing right VOR · off · ADF
  • First officer baro units inhg · hpa
  • First officer bearing left VOR · off · ADF
  • First officer bearing right VOR · off · ADF
Displays 3
  • Inboard left ND · NAV · MFD · EICAS
  • Inboard right EICAS · MFD · ND · PFD
  • FMC source left · auto · right
Chronometer 6
  • Captain time date utc · manual
  • Captain set run · hold year · minutes · hours date
  • Captain elapsed hold · run
  • First officer time date utc · manual
  • First officer set run · hold year · minutes · hours date
  • First officer elapsed hold · run
Comfort 6
  • Flight deck temperature set 0–60 · step 1
  • Cabin temperature set 0–60 · step 1
  • Left shoulder heat set 0–100 · step 1
  • Right shoulder heat set 0–100 · step 1
  • Left foot heat off · low · high
  • Right foot heat off · low · high
Transponder 3
  • Source left · right
  • Altitude source normal · alternate
  • Mode standby · altitude off · transponder · ta only · ta ra

Live cockpit data

Values listed in the app’s aircraft profile. Coverage, freshness and accuracy depend on the aircraft and connection; not every value has been checked in every variant or flight condition.

Flight guidance 27
  • AP engaged
  • AP left
  • AP right
  • FD left
  • FD right
  • Autothrottle active
  • Autothrottle armed
  • Autothrottle armed left
  • Autothrottle armed right
  • LNAV
  • VNAV
  • Flch
  • Heading hold
  • Vertical speed
  • Altitude hold
  • Localizer
  • Approach
  • Speed kts
  • Mach
  • Heading deg
  • Altitude ft
  • Vs fpm
  • Fpa deg
  • Heading mode
  • Vertical mode
  • Bank limit mode
  • Altitude increment mode
Transponder and surveillance 3
  • Squawk
  • Powered
  • Transmitting
Exterior lights 13
  • Landing left
  • Landing right
  • Landing nose
  • Beacon
  • NAV
  • Logo
  • Wing
  • Turnoff left
  • Turnoff right
  • Taxi
  • Strobe
  • Emergency mode
  • Storm
Cockpit lighting 21
  • Master bright on
  • Indicator lights mode
  • Floor mode
  • Dome percent
  • Circuit breaker percent
  • Overhead panel percent
  • Glareshield panel percent
  • Glareshield flood percent
  • Master brightness percent
  • Left panel percent
  • Left flood percent
  • Left outboard display percent
  • Left inboard display percent
  • Right panel percent
  • Right flood percent
  • Right inboard display percent
  • Right outboard display percent
  • Upper display percent
  • Lower display percent
  • Aisle panel percent
  • Aisle flood percent
Aircraft systems 65
  • Adiru on
  • Thrust asym comp mode
  • Service interphone on
  • Electrical standby power mode
  • Electrical cabin utility
  • Electrical ife passenger seats
  • Electrical battery on
  • Electrical APU generator on
  • APU selector mode
  • Electrical bus tie left mode
  • Electrical bus tie right mode
  • Electrical external power primary on
  • Electrical external power secondary on
  • Electrical external power primary available
  • Electrical external power secondary available
  • Electrical generator left on
  • Electrical generator right on
  • Electrical backup generator left on
  • Electrical backup generator right on
  • Ice window heat left side
  • Ice window heat left forward
  • Ice window heat right forward
  • Ice window heat right side
  • Hydraulics engine pump left on
  • Hydraulics engine pump right on
  • Hydraulics electric pump left on
  • Hydraulics electric pump right on
  • Hydraulics demand electric left mode
  • Hydraulics demand electric right mode
  • Hydraulics demand air left mode
  • Hydraulics demand air right mode
  • Fuel crossfeed forward on
  • Fuel crossfeed aft on
  • Fuel pump forward left on
  • Fuel pump forward right on
  • Fuel pump aft left on
  • Fuel pump aft right on
  • Fuel pump center left on
  • Fuel pump center right on
  • Wing anti ice
  • Engine anti ice left
  • Engine anti ice right
  • Pack left
  • Pack right
  • Engine bleed left
  • Engine bleed right
  • APU bleed
  • Air trim air left on
  • Air trim air right on
  • Air recirc upper on
  • Air recirc lower on
  • Air equipment cooling mode
  • Air gasper on
  • Air outflow forward mode
  • Air outflow aft mode
  • Air main deck flow mode
  • Engine eec left mode
  • Engine eec right mode
  • Engine start left mode
  • Engine start right mode
  • Engine autostart on
  • Engine fuel control left mode
  • Engine fuel control right mode
  • IRS aligned
  • APU running
Cabin signs 2
  • No smoking mode
  • Seat belts mode
Wipers and visibility 2
  • Wiper left mode
  • Wiper right mode
EFIS 20
  • Captain baro minimums ft
  • Captain baro minimums set
  • Captain radio minimums ft
  • Captain radio minimums set
  • First officer baro minimums ft
  • First officer baro minimums set
  • First officer radio minimums ft
  • First officer radio minimums set
  • Captain minimums mode
  • Captain baro units mode
  • Captain bearing left mode
  • Captain bearing right mode
  • Captain map mode
  • Captain range nm
  • First officer minimums mode
  • First officer baro units mode
  • First officer bearing left mode
  • First officer bearing right mode
  • First officer map mode
  • First officer range nm
Displays 3
  • Inboard left mode
  • Inboard right mode
  • FMC source mode
Warnings 2
  • Master warning
  • Master caution
Aircraft 1
  • Model
Chronometer 6
  • Captain time date mode
  • Captain set mode
  • Captain elapsed mode
  • First officer time date mode
  • First officer set mode
  • First officer elapsed mode
Comfort 6
  • Flight deck temperature position
  • Cabin temperature position
  • Left shoulder heat percent
  • Right shoulder heat percent
  • Left foot heat mode
  • Right foot heat mode
Controls 6
  • Gear down
  • Parking brake
  • Autobrake mode
  • Speedbrake percent
  • Speedbrake state
  • Flaps label
Transponder 3
  • Source mode
  • Altitude source mode
  • Mode

See the full aircraft support list or another aircraft: Fenix A320 family, FlyByWire A32NX, iniBuilds A350, PMDG 737, TFDi MD-11, FlyByWire A380X.
